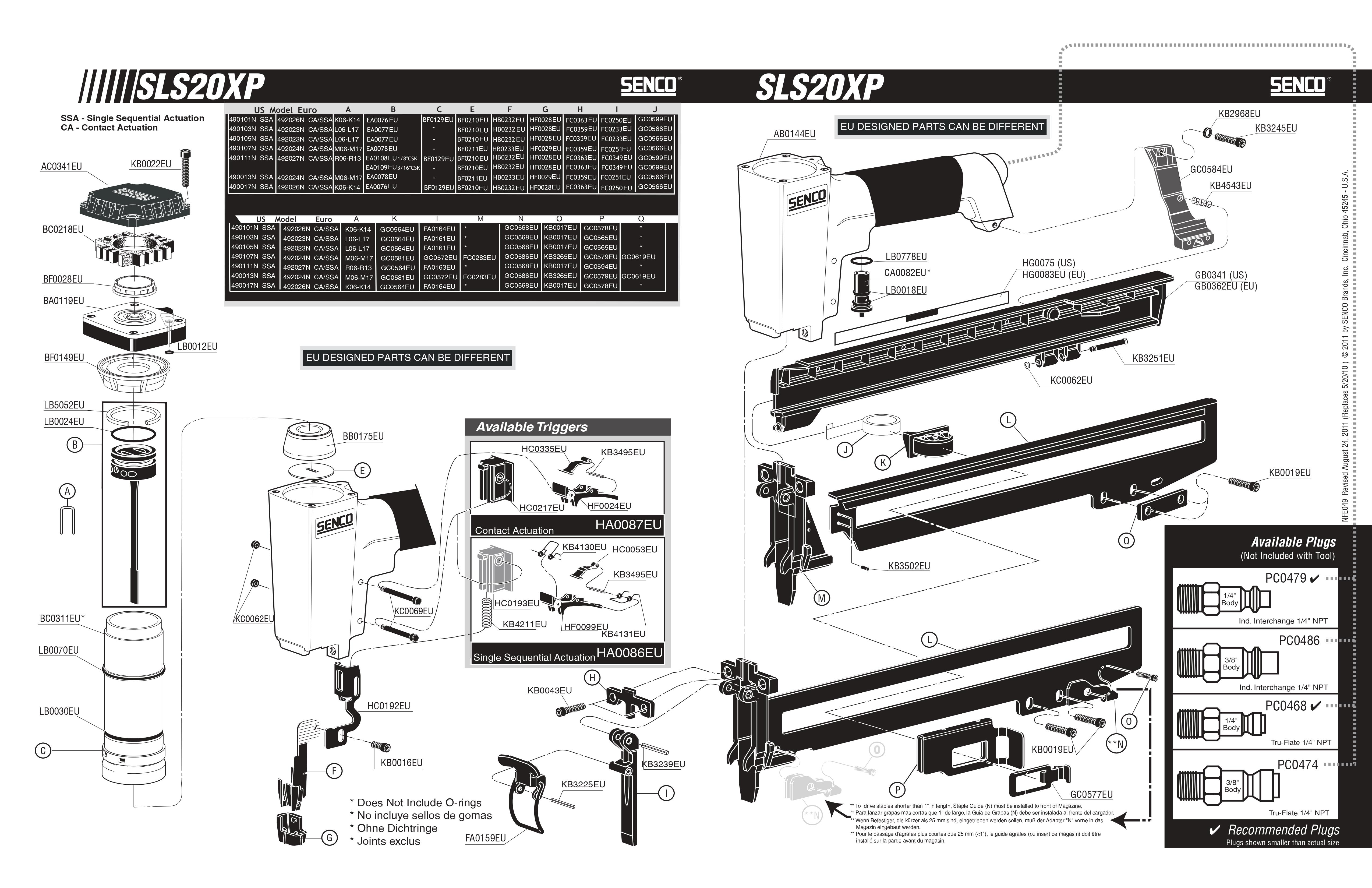

Senco onderdelentekeningen

Bottom front plate

Seal O-ring

Seal O-ring

Piston stop SLS20

Trigger assembly w/instr rstr.

Lower safety assembly M SLS20/SLS

Trigger pin

Seal O-ring

Bottom front plate

Feeder shoe

Feeder shoe latch

Rail M-staple SLS20/SLS25

Rail plate

Piston/driver assembly M-staple

Muffler

seal driver M yellow

Top front plate

Bottom front plate

Back plate M-staple SLS20/SLS25

Upper safety link SLS

Pin spirol 3/32 x 1/4

Screw

Safety spring

Pin spirol HD 3/32 x 13/16

Pin spirol HD 3/32 x 13/16

Hex nut SN4/SFN2 flat

Safety label CE multiple tool

Safety pad

Safety pad SLS

Lower safety assembly

Firing valve assembly SLP20 SLS20

Trigger assembly w/instr dual

Cylinder sleeve alum

Pin

Door pin

Safety guide dual SLS

Outer trigger

Spring double torsion

Screw shc 8-32x7/16

Screw shc 8-32x7/8

Exhaust deflector

Seal driver L/K/R blue

Piston/driver assembly K-staple

Rail/backplate assembly K

Block out L&R SLS

Feeder shoe

Magazine door assembly EU

Feeder shoe M & N SLS20/SLS2

Spring housing (m) SLS20/SLS25

Remote assembly

Main body assembly SLS20/SLS22

Support rail

Spring housing SLS20

Feeder shoe spring L&M&N

Feeder shoe spring

Block out M-staple SLS20/SLS25

Sleeve retainer

Power reduction ring

Exhaust seal

Latch spring assembly SLS

Seal O-ring

Seal O-ring

Retainer
