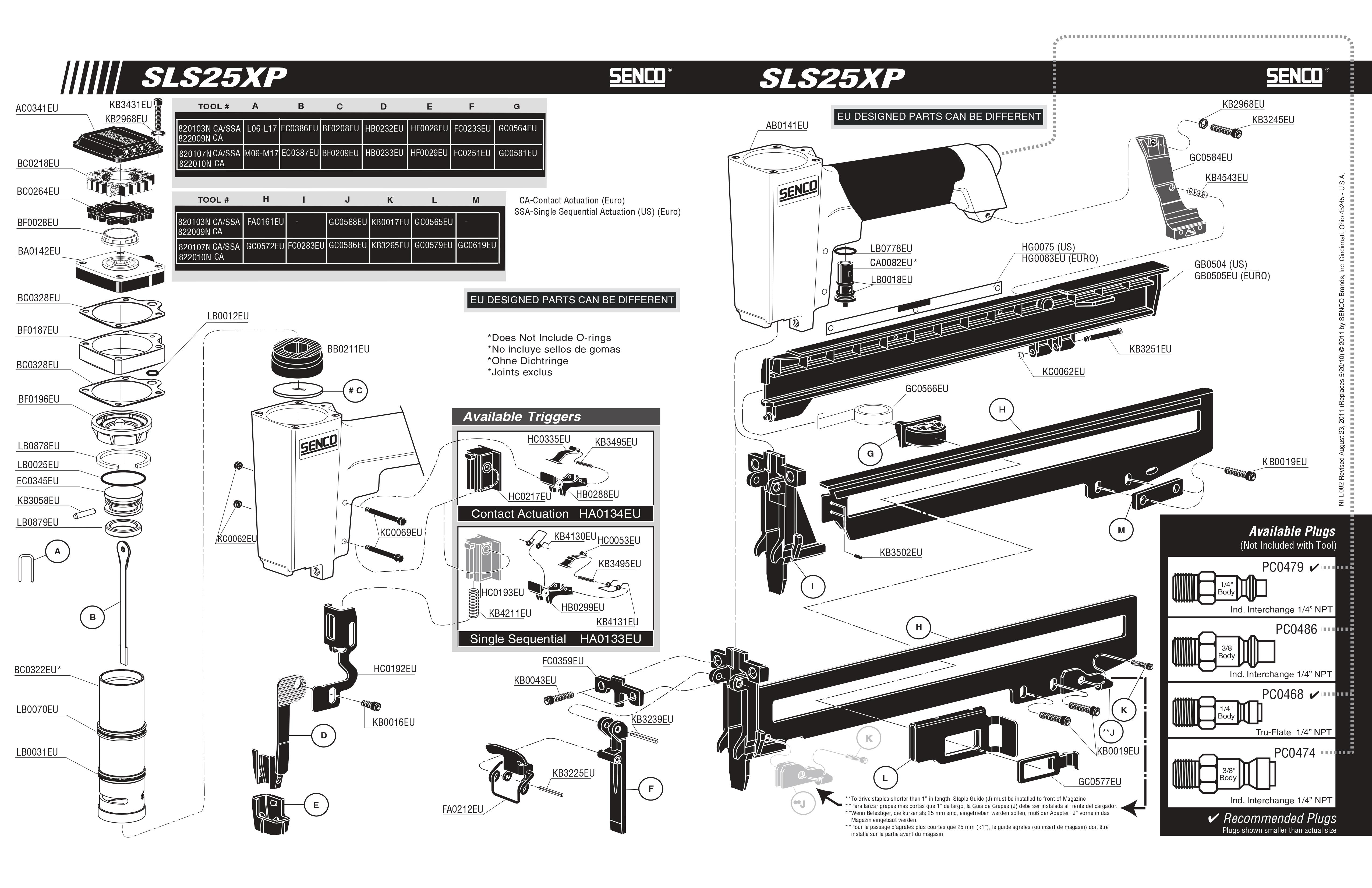

Senco onderdelentekeningen

Pin

Trigger assembly w/instr dual

Trigger

Main body assembly SLS25XP

Back plate M-staple SLS20/SLS25

Lower safety assembly M SLS20/SLS

Magazine door assembly SLS25XP

Exhaust deflector

Main body spacer

Upper safety link SLS

Feeder shoe M & N SLS20/SLS2

Muffler

Block out L&R SLS

Seal O-ring

Screw shc 8-32x7/8

Trigger assembly w/instr rsrt.

Trigger assembly w/instr rsrt.

Driver M-staple SLS25

Lower safety assembly

Firing valve assembly

Cylinder sleeve SLS25XP

Trigger assembly

Rail M-staple SLS20/SLS25

Bottom front plate

Main piston

Remote assembly

Feeder shoe

Support rail

Main piston seal

Safety pad

Seal driver M

Feeder shoe spring L&M&N

Spring housing SLS20

Inner trigger dual

Sleeve retainer

Door pin

Latch assembly SLS25/22

Driver pin retainer

Block out M-staple SLS20/SLS25

Driver pin

Spring housing (m) SLS20/SLS25

Exhaust seal

Muffler insert

Feeder shoe latch

Rail plate

Trigger pin

Inner trigger restricted

Safety pad SLS

Safety spring

Safety guide dual SLS

Seal O-ring

Gasket

Screw

Spring double torsion

Pin spirol HD 3/32 x 13/16

Spring double torsion

Pin spirol 3/32 x 1/4

Screw shc 8-32x5/8

Retainer

Seal O-ring

Screw

Screw shc 8-32x7/16

Seal O-ring

Seal O-ring
